| Lieu d'origine: | La Chine |
|---|---|
| Nom de marque: | XWH |
| Certification: | CE |
| Numéro de modèle: | DN2 |
| Quantité de commande min: | 1 ENSEMBLE |
| Prix: | $3,000.00-$5,000.00 |
| Détails d'emballage: | cas en bois |
| Délai de livraison: | 15 jours ouvrables |
| Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 500 ensembles/ensembles par semaine |

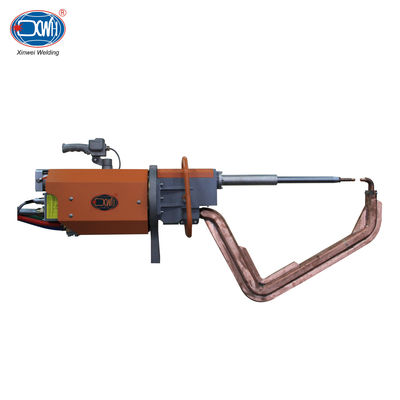

| Nom de produit: | arme à feu suspendue portative de soudage par points de 220V 380V | Type de machine: | Outils de réparation automatique |
|---|---|---|---|
| Capacité évaluée: | 31kVA | Après service de garantie :: | Support technique visuel, appui en ligne, pièces de rechange, maint de champ |
| Poids (kilogrammes): | 60 KILOGRAMMES | Max. Welding Thickness: | 3.5+3.5mm |
| Coefficient d'utilisation évalué: | 50% | Tension: | 380v |
X type C type
features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
1. The suspension spot welding machine is composed of welding tongs, welding machine transformer, welding machine controller, water cooling system, pneumatic pressure system, suspension device and other parts. The electrode arm of the spot welding machine adopts chromium-zirconium copper (CuCrZr-1), which ensures the stability of the welding performance, the service life of the welding machine and the strength of the electrode arm.
2. The current limit of the welding point of the weldment is high, and the hotbed is also high. Therefore, after the welding machine controller controls the energization time, the welding point can get a reproducible nugget state, so it can adapt to multiple types of the same or dissimilar metals and Welding of coated steel plates.
3. The suspension spot welding machine adjusts the heat by changing the conduction angle of the thyristor through the welding machine controller, so it is easy to realize mechanization and automation, so it can be matched with a robot for fully automatic welding operation.
X Type
Specifics
ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.
This is one of our overseas customers' factories.
