| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | XWH |
| Certification: | CE |
| Numéro de modèle: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Quantité de commande min: | 1 série |
| Prix: | $18000.00 - $20000.00 |
| Détails d'emballage: | Étui en bois |
| Délai de livraison: | 30 jours ouvrables |
| Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 50 ensembles par mois |
| Nom du produit: | Machine automatique de soudure continue | Application du projet: | Soudure de réservoir de carburant |
|---|---|---|---|
| Fonction: | Réservoir de carburant de soudage | Le type: | Semi-automatique |
| Caractéristiques: | Haute efficacité | Matériau de soudage: | Métal d'acier au carbone d'acier inoxydable |
| Service après garantie: | Assistance technique par vidéo, assistance en ligne et pièces détachées | Service après-vente fourni: | Pièces détachées gratuites, installation sur le terrain, mise en service et formation |
| Certification: | CE | ||
| Mettre en évidence: | Machine de soudage de réservoirs de carburant en acier inoxydable,Machine de soudage par couture latérale de roulement en aluminium,Machine de soudage à couture galvanisée SS |
||

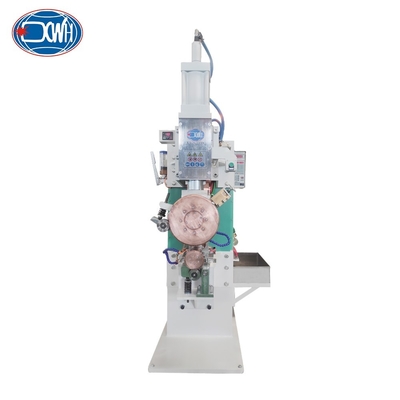

The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.
|
Model/Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.
2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.
3. The pressurization mechanism adopts vertical pressurization, and the electromagnetic valve is connected to the cylinder at the shortest distance, greatly accelerating the reaction speed of the action and improving production efficiency; The pressure guiding mechanism adopts self-lubricating bearings, which have good follow-up performance; Reduced the impact force of the electrode on the workpiece during pressurization, preventing damage to the workpiece and excessive depth of pits during welding, reducing electrode deformation and wear.
General Structures:
Detail Images:
Multi Types:

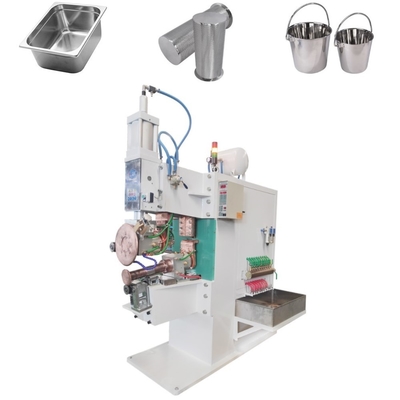

Application:
Please note: the welding machine can be custom-made according to your requirements.
