| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | XWH |
| Certification: | CE |
| Numéro de modèle: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Quantité de commande min: | 1 série |
| Prix: | $18000.00 - $20000.00 |
| Détails d'emballage: | Étui en bois |
| Délai de livraison: | 30 jours ouvrables |
| Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 50 ensembles par mois |
| Nom du produit: | Machine de soudage des réservoirs de carburant | Application du projet: | Réservoir d'eau de soudage pour ustensiles de cuisine |
|---|---|---|---|
| Fonction: | Soudage de réservoirs en acier | Le type: | Machine de soudure de réservoir |
| Caractéristiques: | Haute efficacité | Matériau de soudage: | Métal d'acier au carbone d'acier inoxydable |
| Service après garantie: | Assistance technique par vidéo, assistance en ligne et pièces détachées | Service après-vente fourni: | Pièces détachées gratuites, installation sur le terrain, mise en service et formation |
| Certification: | CE | ||
| Mettre en évidence: | Machine de soudage à couture droite longitudinale,Certification CE de soudeur automatique à réservoirs,Machine de soudage à couture verticale |
||

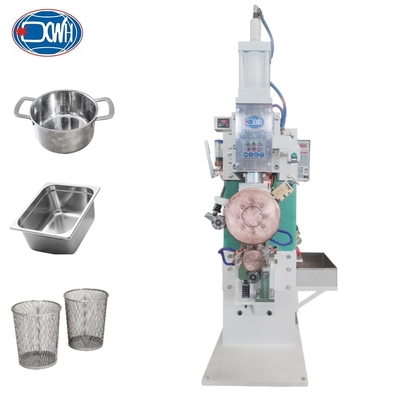

The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.
|
Model/Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.

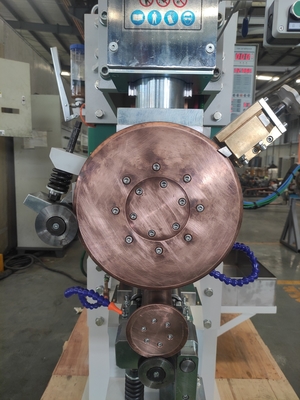

2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.
3. Water cooling circulation system: Adopting parallel grouping cooling method, the transformer, inverter system and electrode head are cooled separately, and the heat generated during the welding process is carried away in a timely manner to stabilize the quality of the welding points and extend the service life of the electrodes and related components. A flow meter, ball valve, and water filter are installed at the inlet for easy observation and replacement of spot welding electrodes. When the water flow is insufficient, an automatic alarm is triggered to ensure the normal operation of the water cooling circulation system.
General Structures:
Detail Images:
Multi Types:
Application:
Please note: the welding machine can be custom-made according to your requirements.
