| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | XWH |
| Certification: | CE |
| Numéro de modèle: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Quantité de commande min: | 1 série |
| Prix: | $18000.00 - $20000.00 |
| Détails d'emballage: | Étui en bois |
| Délai de livraison: | 30 jours ouvrables |
| Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 50 ensembles par mois |
| Nom du produit: | Machine de soudage des réservoirs de carburant | Application du projet: | Réservoir d'eau de soudage pour ustensiles de cuisine |
|---|---|---|---|
| Fonction: | Soudage de réservoirs en acier | Le type: | Machine de soudure de réservoir |
| Caractéristiques: | Haute efficacité | Matériau de soudage: | Métal d'acier au carbone d'acier inoxydable |
| Service après garantie: | Assistance technique par vidéo, assistance en ligne et pièces détachées | Service après-vente fourni: | Pièces détachées gratuites, installation sur le terrain, mise en service et formation |
| Certification: | CE | ||
| Mettre en évidence: | Machine de soudage à couture à rouleaux de tôles métalliques,Machine de soudage à couture en acier inoxydable,Machine de soudage à couture à roulement à coude horizontale |
||

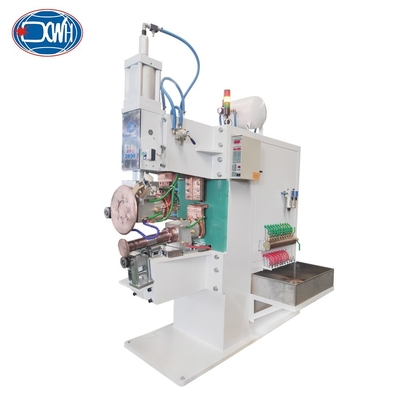

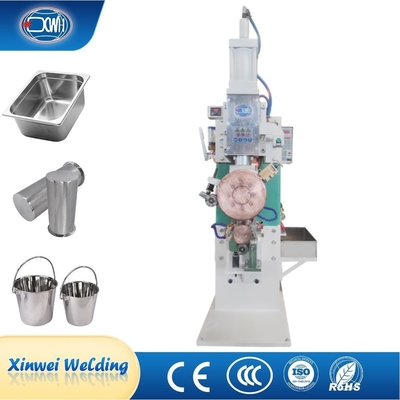

The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.
|
Model/Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. Adopting three-phase stepless speed regulation electrode drive, the welding speed adjustment is convenient and stable.
2. Welding machines come in two forms: vertical welding and horizontal welding, suitable for welding various workpieces.
3. Clever and reasonable internal structure reduces the weakening of welding performance caused by heat generation.
4. The silver bearing shell rotates and conducts electricity with excellent contact, minimizing the loss of electrical energy conversion to the greatest extent possible.
5. Widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, basin making, and canning.
General Structures:
Detail Images:
Multi Types:
Application:
Please note: the welding machine can be custom-made according to your requirements.
