Machine principale multi de soudage par points

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Nom De Marque:	Xingweihan
Numéro De Modèle:	D (n) b - 100 ， d (n) b - 160, d (n) b - 200, d (n) b - 250
Nombre De Pièces:	1
Prix:	USD10000-USD12000
Conditions De Paiement:	L / C, D / A, D / P, T / T, Western Union, Moneygram
Capacité à Fournir:	50 ensembles / mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE, RoHS, ISO

Nom de produit:

Soudeurs de résistance à plusieurs points soudeurs de la machine à souder pour tube galvanisé

Application:

Soudage de tube galvanisé

Fonction:

Soudeurs de résistance

Type de machine:

Machine de soudage au point pour métal

Méthode de refroidissement:

Refroidissement de l'eau

Matériel de soudage:

Acier inoxydable en aluminium métallique

Fonctionnalité:

Soudage au comptant de la machine de soudage

Garantie:

Garantie de 12 mois

After Garantie Service:

Assistance technique vidéo, support en ligne et pièces de rechange

Service après-vente fourni:

Pièces de rechange gratuites, installation sur le terrain, mise en service et formation

Détails d'emballage:

Casse en bois

Capacité d'approvisionnement:

50 ensembles / mois

Mettre en évidence:

multi point resistance spot welder

galvanized tube welding machine

multi head spot welder with warranty

Description du produit

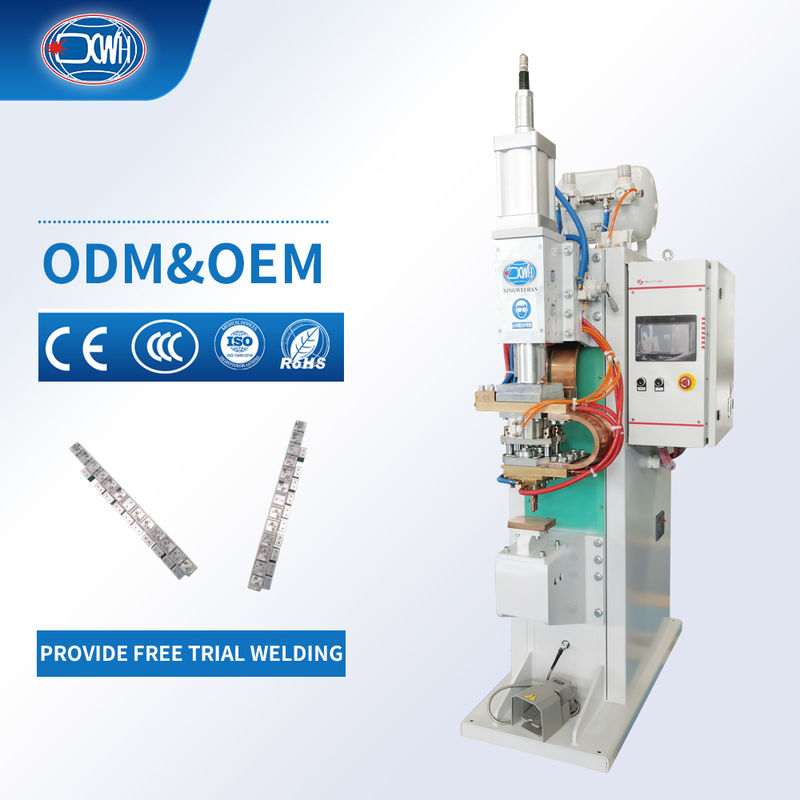

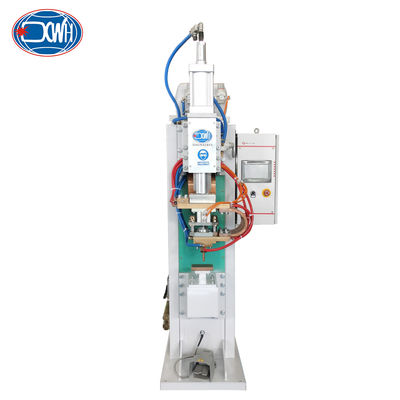

Multi Point Resistance Welders Spot Welding Machine Welder For Galvanized Tube

Product Introduction

This high-performance production engine enhances the welding capacity of galvanized pipes. Its core advantage lies in the use of dual guns and synchronous welding. Using two customized welding heads that have undergone precise calculations, it can complete high-quality spot welding of two key positions simultaneously in a single operation cycle, doubling efficiency compared to traditional single-head equipment.

The sturdy gantry frame and customized electrode fixture ensure high repeatability and consistency of welding points even under long-term high load operation. Optimized welding parameters for galvanized materials effectively overcome difficulties caused by low zinc layer resistivity, producing strong and aesthetically pleasing weld nuggets. Operators only need to complete simple loading/unloading, while the machine delivers stable, reliable output with precise rhythm - an indispensable capacity multiplier for large-scale production lines.

Features

The machine's tree-style structure features impact-resistant, earthquake-resistant, high-rigidity design with precise mechanical processing to meet component installation and load strength requirements. Internal reinforcing ribs minimize deformation during welding, ensuring stability and safety.
Upper electrode moves vertically in linear guides with high precision repeat positioning for accurate welding points.
Electrode pressurization is smooth and fast, using aluminum alloy cylinder barrels with low-damping sealing rings and light friction ring combination cylinders. Equipped with pilot high-flow electromagnetic directional valves for fast response and sensitive follow-up performance, achieving extremely high dot speed.
Capacitive charging/discharging provides fast speed, short welding time, and high efficiency.

Technical Parameters

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures

Detailed Components

The Upper Electrode: After startup, automatically loads, welds, and unloads for fully automated operation. Custom dual welding heads enable synchronous welding for improved efficiency.

The Pressure Component: Adjustable descent/ascent speed reduces pressure impact on workpieces and minimizes noise.

Gas Storage Tank: Dedicated tank reduces welding pressure fluctuations for stable welding force.

Waterway Components: Rust-proof surface treatment with independent drainage for easy blockage observation.

Scene Images

Application

Frequently Asked Questions

When can you arrange shipment?

Shipment is 15 days after receiving deposit, but customized machines require more than 25 days.

Do you inspect the finished products?

Yes, each production step undergoes inspection by our QC department before shipping.

Are you factory?

Yes, we are the factory manufacturing all machines and can provide customized services according to your requirements.

How to buy your Spot Welder?

Please send inquiry to our email, and we will provide a PI for payment.

How to contact you?

You can email or call us directly.

How will you deliver my goods to me?

We ship by both air and sea freight.

How about your transport packing? Is it possible to damage the machine during transportation?

We have extensive international shipping experience. All packing uses extra-thick cartons with protective PE foam and waterproof membrane. No damage has occurred during transportation to date.

What kind of payment do you accept?

We accept T/T, Western Union, PayPal, L/C, D/A, etc.
